SEC2000 - Spectrometer

SEC2020 Spectrometer system
SEC2020 SPECTROMETER SYSTEM
SEC2020 Spectrometer System is the substitutive item for SEC2000 Spectrometer.
For detailed information about the new system, you can find at SEC2020 Spectrometer System page.



SEC2000 - Spectroelectrochemical cell
Instrumental features:
- 2048 pixels CCD array
- PC connection by USB
- fixable to light source and cuvette holder
- allows light source connected to the system through optical fiber
- wide variety of setup for different applications


  Spectroelectrochemical set up




  • Overview
  • Combo kit
  • Specifications
  • Operating Principle
  • Applications
  • UV/VIS
  • VIS/NIR

SEC2000 Spectrometer, a multi-channel spectrometer, is specifically designed for spectroelectrochemical measurements. The combination of the spectrometer and light source, allows having UV/VIS and VIS/NIR mode. In the light source, the lens is incorporated to the light in a small module, it eliminates the need of fiber optics. Detector and light source could be set to the cell holder in a 90 degrees angle for measurements of the fluorescence.

SEC2000 is divided in 3 parts

Spectrometer (detector)
Spectrometer (detector)
Light Source
Light source
Cuvette Holder
Cuvette holder

For the combo kit, spectrometer (detector) has a standard 50 µm wide slit, with a resolution of 2.3 ± 0.2 nm. Slit of 10, 50, 100 and 200 µm is available as an option. Furthermore, UV/VIS or VIS/NIR model can be chosen by the measurement wavelength range.

Features

  • Three modes in one system
  • Real-time analysis
  • Quantitative analysis (Linear equation and Automatic calculation of correlation function)
  • Accurate and fast analysis
  • Small, Light and Best price

UV/VIS

Catalog No. Description
013253 SEC2000-UV/VIS Spectrometer combo Kit Ver.1.3
Components
013256 SEC2000-UV/VIS Spectrometer Ver.1.3 SLIT50
012193 SEC2000-DH UV Light Source
012195 SEC2000-CUV Cuvette Holder


VIS/NIR

Catalog No. Description
013250 SEC2000-VIS/NIR Spectrometer combo kit Ver.1.3
Components
013251 SEC2000-VIS/NIR Spectrometer Ver.1.3 SLIT50
012194 SEC2000-TH Visible Light Source
012244 SEC2000-CUV Cuvette Holder with diffusion plate

Standard Composition

A typical miniature spectrophotometer consistis of four basic elements:
– SEC2000 (detector)
– Visual Spectra 2.1 (program software)
– SEC2000-TH (light source for Visible)or SEC2000-DH (light source for UV-Visible
– SEC2000-CUV (cuvette holder)

Item Description Item Code
Detector SEC2000 Spectrometer SEC2000
Software Visual Spectra 2.1 Visual Spectra 2.1
Light Source Tungsten-Halogen Lamp (for Visible) SEC2000-TH
Deuterium & Tungsten Halogen Lamp (for UV-Visible) SEC2000-DH
Sample Holder 3-Way Holder SEC2000-CUV


Spectrometer

MODEL SEC2000-UV/VIS SEC2000-VIS/NIR
Detector 2048 pixels CCD array
Wave length range 200 - 900 nm 400 - 1000 nm
Grating Blazed at 400 nm Blazed at 500 nm
Resolution ∼ 2.3 nm: slit 50 µm x 1000 µm (standard) (*1)
Accuracy < 1% at 1 Abs
Dark noise < 2 mAbs
A/D resolution 14 bit
Optical entrance SMA905
Interface USB 2.0
Operating system WindowsTM 8.1 / 10
Dimension (W x D x H) 98 x 118 x 35 mm
Catalog No. 013256 013251

(*1) Slit could be selected from: 10, 25, 100, 200 µm.

Light source

For UV/VIS mode:

SEC2000-DH (*2)
Light source (deuterium & tungsten halogen)
Spectral range (Halogen + D2) 200 - 1100 nm
D2 lamp Spectral range 200 - 400 nm
Power consumption (240 nm) > 5 x 10-8 W/nmsr
Stability 1 x 10-3 AU
Drift < 0.25%/h
Bulb life (*3) > 800 h
Halogen lamp Bulb life > 2000 h
Dimension (W x D x H) 98 x 118 x 35 mm
Catalog No. 012193

(*2) Standard SEC2000-DH does not include fiber-optic connector. Selection of SMA905 type
SEC2000-DH is possible.
(*3) Value for less than 50% power consumption of 240 nm.

For VIS/NIR mode:

SEC2000-TH (*4)
Light source (tungsten halogen)
Spectral range 360 ~ 2000 nm
Bulb life 1,500 h
Connector SMA905
Dimension (W x D x H) 98 x 118 x 35 mm
Catalog No. 012194

(*4) SEC2000-TH includes fiber connector (SMA905).

Visual Spectra 2.1

Visual Spectra is the software for SEC2000. The minimum recommended PC configuration, for the
instalation of the Visual Spectra 2.1 is windowsOS 8.1, CPU Intel Core i3.

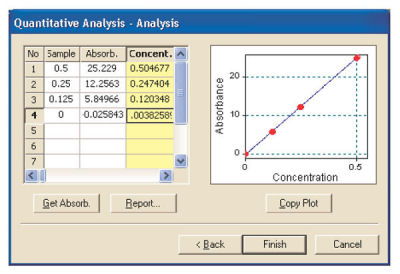

Calibration mode

SEC2000 Calibration mode

Using the calibration mode, you could have the concentration analysis for two ways. The concentration
of the sample could be obtained by baseline method or by the absorbance calue at a single wavelength.
If your measurement analysis has a baseline method, in this case the noise will not influence the result.
For non-distinct and unclear absorption peak, you could determine the absorbance at the sinle wavelength.

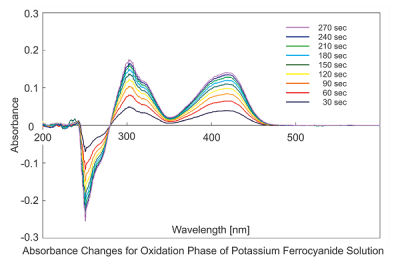

Real time Monitoring

SEC2000 Real time Monitoring

The oxidation of potassium Ferrocyanide at 800 mV vs Ag/AgCl was measured by absorbance mode using SEC2000.

The light or excitation source sends light to the sample. The light interacts with the sample. The light is collected by the spectrometer and the spectral information is sent to the SEC2000. The energy is transmitted through cuvette holder and it is dispersed via a fixed grating across a linear charge-coupled device (CCD) array detector. The A/D converter transforms the analog data collected from the spectrometer into digital information. This is passed to the software, providing the user with application-specific information.
SEC2000 Basis elements

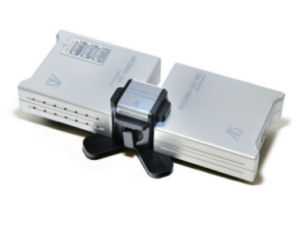

Absorbance/Transmitance Mode
Absorbance Transmitance mode

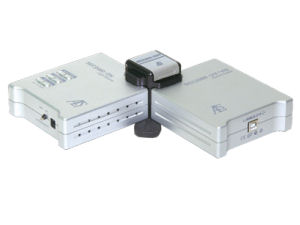

Fluorescence/Reflectance Mode
Fluorescence Reflectance mode

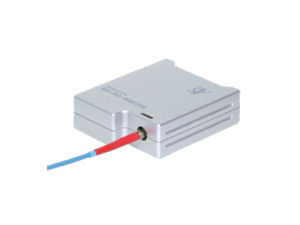

Irradiance Mode
Irradiance mode
Type Application Fields
Adsorbance/Transmitance - Concentration of chemicals (solution)
- Polymer extrusion processes
- DNA quantification

Reflectance - Freshness testing
- Film thickness/composition (Quality control)
- Activation energy of photocatalytic species
- Textile quality control

Emission(Irradiance) - Astronomy (e.g., spectra of Hale-Bopp, plasma monitoring)
- Metal in situ monitoring
- Luminescence (PL, EL), LED & Laser wavelength

Scattering - Oil concentrations of Oil/Water system
- Raman Spectroscopy
- Physical transition phenomena (e.g., melting point, glass-transition crystalize temperature)

Fluorescence - Marine organisms
- Biology (DNA, Protein, Cell proliferation assay, Histamine analysis, Alga monitoring)
- Environmental fields (Waste water analysis, Ground water trace studies, Hydrocarbon detection, Dissolved oxygen)
- Plant Efficiency (Plant physiology, Plant breeding, Horticulture, Agronomy, Agrochemicals, Pollution studies, Forestry, Ecology)
- Tissue diagnosis

Reflection Index - Concentration in solution


SEC2000 UV/VIS Application

SEC2000-UV/VIS Spectrometer is simple and easy operation, compact and multi-channel spectrometer. In the light source the lens was incorporated to the light in a small module, it eliminated the need of fiber optics (Fig. 1). The main application of SEC2000 is for spectroelectrochemical measurements. Moreover, the combination with fiber-optics probe, introduced below, becomes possible the application in a wide experimental fields. Based on the examples below, you could find your own configuration!
Example 1
Fig.1 SEC2000 UV-VIS

Features

  • Three measurement modes in one
    (Absorbance/Reflectance/Irradiance)
  • Real-time measurement
  • Quantitative/Calibration mode
  • Quickly analysis
  • Portable

Specifications

  • Wavelength range: 200 nm ∼ 900 nm
  • Resolution: ∼ 2.3 nm
  • Dark noise: < 2 mAbs

Example of experimental configuration

Spectroelectrochemical measurement

ALS1200A Electrochemical analyzer and SEC-C Thin Layer Quartz Glass Spectroelectrochemical cell combination could be a compact configuration for spectroelectrochemical measurement. The oxidation of Potassium Ferrycianide at 800 mV vs Ag/AgCl was measured by absorbance mode using SEC2000 (Fig.2).

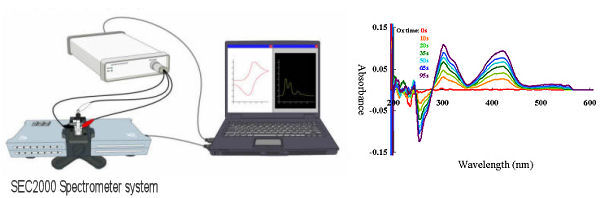

Fig.2 Spectroelectrochemical measurement system and Example of spectrogram monitoring.
Fig.2 Spectroelectrochemical measurement system and Spectrogram.

Combination with fiber optics

When you connect the optional fiber optics in SEC2000 Spectrometer, it could amplify the experimental application field. Some of the configurations are shown below.

Example 1

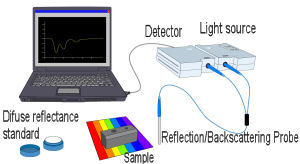

Reflection spectra measurement using reflection probe
Example 2
Reflection spectra measurement using reflection probe for immersion
Example 1 Example 2
Color analysis and absorbance of the material could be measured by reflected light spectrum. Fiber optic from light source and detector is embedded in a reflection light measured probe. Measurement using immersion probe could be directly with the immersion of the probe in a sample, without any previous adjustment.

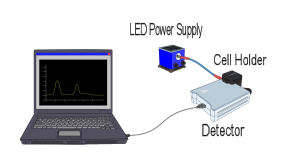

Example 3
Fluorescence measurements using UV-LED light source
Example 4

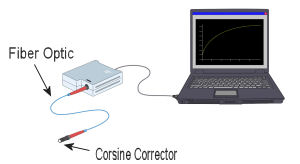

Relative radiation light measurement

Example 3 Example 4
With an absolute spectral intensity irradiation at 90 degrees, the fluorescence of the sample could be measured. For this application a high power supply, as LED power supply, is recommended. Radiation, as a solar radiation, with a 180 degrees field of view, could be collected using Cosine Correctors at the extremity of the fiber optic connected to the SEC2000-UV/VIS.


SEC2000 VIS/NIR Application

Features
・Three measurement modes in one
  (Absorbance/Reflectance/Irradiance)
・Real-time measurement
・Quantitative/Calibration mode
・Quickly analysis
・Portable

Specifications
・Wavelength range: 400 ∼ 1000 nm
・Resolution: ∼ 2.3 nm
・Dark noise: < 2 mAbs
Example 1
Fig.1 SEC2000 Spectrometer



Example of experimental configuration using SEC2000-VIS/NIR Spectrometer

When you connect the optical fiber or optical fiber probes in SEC2000 Spectrometer, it could amplify the experimental application field.

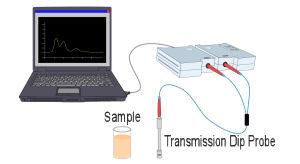

Reflection spectra measurement using transmission dip probe

The transmition dip probe has a tip in the extremity of the probe, which is appropriate for the measurement of the spectrometry of the solution. Using the Visual Spectra Analysis software, it could be possible to save automatically the value of the spectrum variation and the spectrogram in a determinad wavelength.
Example 2

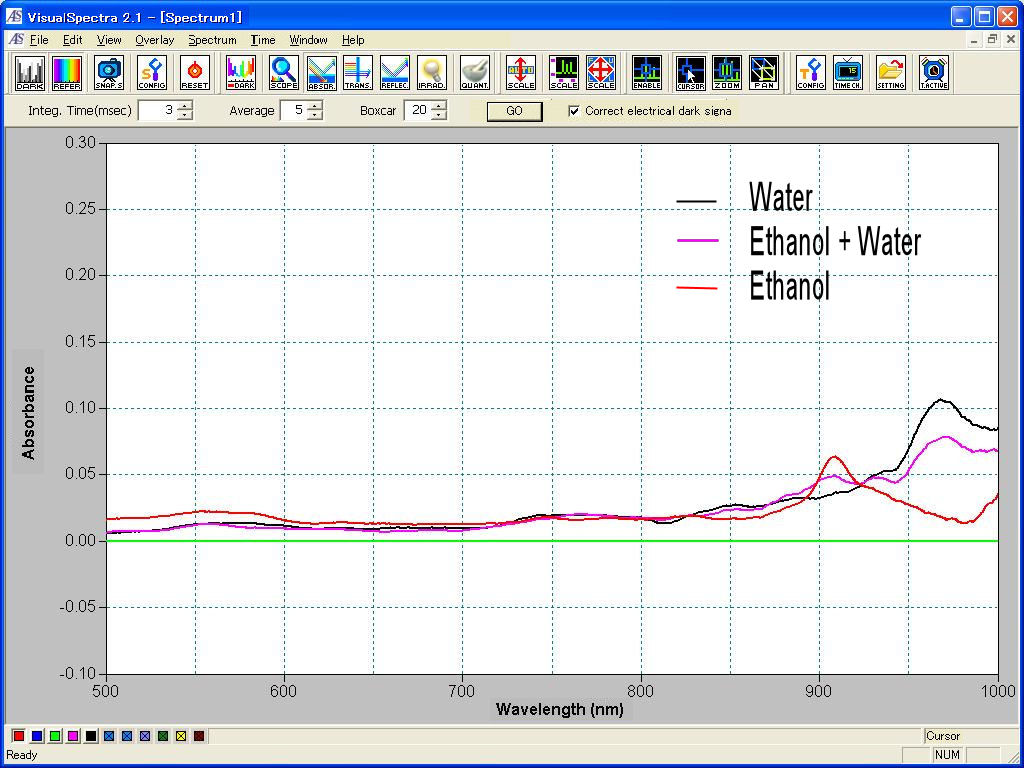

Measurement of the Alcohol concentration
SEC2000-VIS/NIR Spectrometer with a transmission dip probe was used for the alcohol concentration measurement.

Alcohol concentration monitoring


In this measurement Tranmission dip probe with a 10 mm Pathlength tip was used.


Accessories for SEC2000 Spectrometer

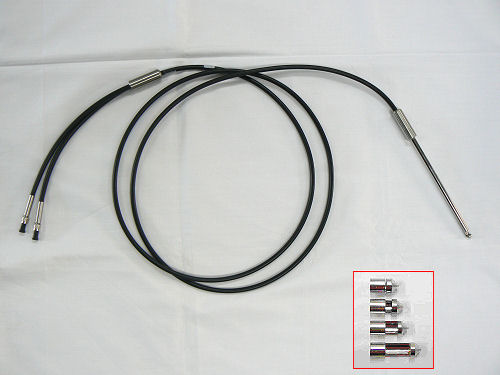

Catalog No. Description Transmission dip probe and Pathlength tip.
012780 Transmission dip probe
012784 PD-U20 20 mm tip
012781 PD-U10 10 mm tip
012782 PD-U5 5 mm tip
012783 PD-U2 2 mm tip
